Custom Simulations

Some features in AutoEmuluate can be run simply on data where as other require a simulation to be run. For example, features such as active learning, require the user to provide a simulator that can be run by AutoEmulate. This tutorial will step through how to do this.

The Simulator Class

The simulator class is a Base Python Class that can be inherited to create a custom simulator. The simulator class requires the user to implement the following:

• parameter_range: A parameter set at class inititation. A dictionary of str to tuple pairs. The string is the name of the prameter and the tuple is the min and max value of the parameter. A range is given because the simulator will sample prior to running the simulation from this distribution.

• output_variables: A parameter set at class initiation. A list of strings that are the names of the outputs that the simulator will return.

• _forward: An abstract method that must be implemented by the user. This method will define a single forward pass of the simulation, taking in the input parameters and returning the output variables. There are some important rules for this method:

  • The input to the method must be a tensor of shape (1, n) where n is the number of input parameters.

  • The output of th method must be a tensor of shape (1, m) where m is the number of output variables.

  • If the simulation fails, it must output None.

Below is an example of a custom simulator that can be used with AutoEmulate.

The example is a projectile simulation, where we will simulate the distance travelled given a launch angle and initial velocity.

from autoemulate.simulations.base import Simulator
import torch

class Projectile(Simulator):
    """
    Simulator of projectile motion.
    """

    def __init__(self, param_ranges, output_names):
        super().__init__(param_ranges, output_names, log_level="error")

    def _forward(self, x):
        """
        Calculate the horizontal distance a projectile travels using PyTorch.

        Parameters:
        ----------
        velocity: float or torch.Tensor
            Initial velocity in m/s.
        angle_degrees: float or torch.Tensor
            Launch angle in degrees.

        Returns:
        -------
        torch.Tensor
            Distance traveled in meters.
        """
        # Extract velocity and angle from input tensor
        angle_degrees = x[:, 0]
        velocity = x[:, 1]

        # Convert angle from degrees to radians and calculate distance
        angle_radians = torch.deg2rad(angle_degrees)

        # Calculate the distance using the projectile motion formula
        distance = (velocity ** 2) * torch.sin(2 * angle_radians) / 9.81

        # Ensure the output is a 2D tensor
        if distance.ndim == 1:
            distance = distance.unsqueeze(1)
        return distance

param_ranges = {"angle": (5, 85), "velocity": (0.0, 1000)}
output_names = ["distance"]

projectile_simulator = Projectile(param_ranges=param_ranges, output_names=output_names)

What can the simulator do?

The first thing to do is sample inputs from the parameter space. In the following cell, we sample 10 times. This is appended into a single tensor of shape (10, 2) where the first column is the angle and the second column is the velocity.

The input_samples method implements latin hypercube sampling of the input parameters. However, if you have a preferred sampling method, you can simply override this method.

input_samples = projectile_simulator.sample_inputs(10)

print(input_samples.shape)

torch.Size([10, 2])

These input samples can now be passed to the simulator to run a simulation. The forward method will simulate a single forward pass of the simulation whereas forward_batch will simulate a batch of forward passes.

single_output = projectile_simulator.forward(input_samples[0:1])

print("Single output: ", single_output)
print("Single output shape: ", single_output.shape)

Single output:  tensor([[43289.7656]])
Single output shape:  torch.Size([1, 1])

multiple_output = projectile_simulator.forward_batch(input_samples)

print("Multiple output: ", multiple_output)
print("Multiple output shape: ", multiple_output.shape)

Multiple output:  tensor([[43289.7656],
        [ 7796.0542],
        [20389.9844],
        [  301.2392],
        [56446.5078],
        [ 7348.9531],
        [  556.5570],
        [26166.9023],
        [18656.7109],
        [24637.1191]])
Multiple output shape:  torch.Size([10, 1])

You can access the outputs of the simulation in a dictionary format by calling the get_outputs_as_dict() method. This is most useful in the cases where the simulator has multiple outputs.

outputs_dict = projectile_simulator.get_outputs_as_dict()
outputs_dict

{'distance': tensor([43289.7656,  7796.0542, 20389.9844,   301.2392, 56446.5078,  7348.9531,
           556.5570, 26166.9023, 18656.7109, 24637.1191])}

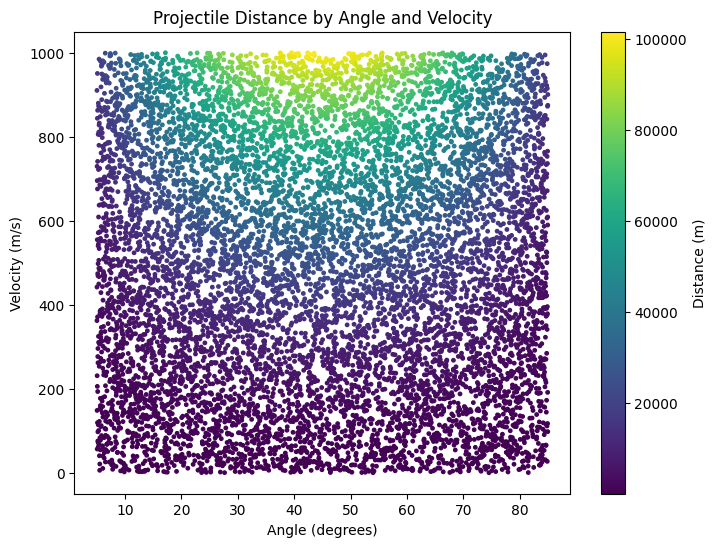

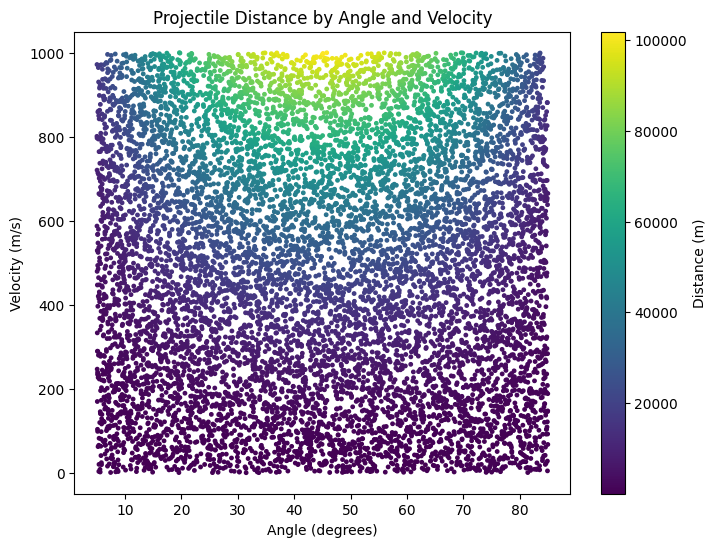

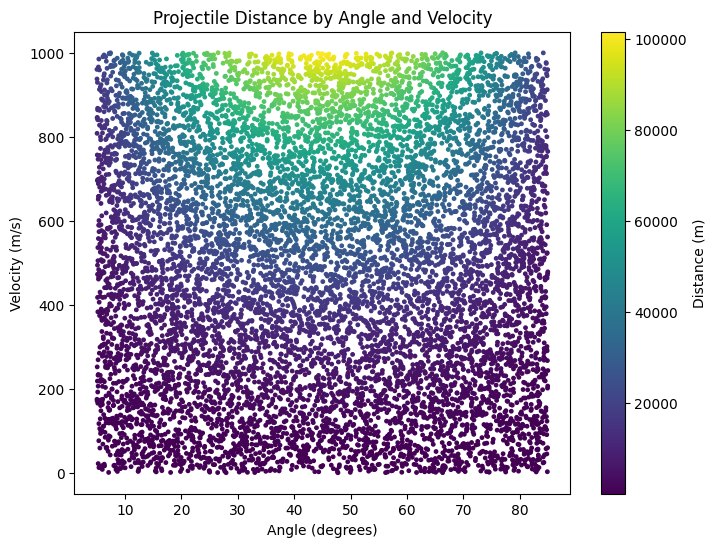

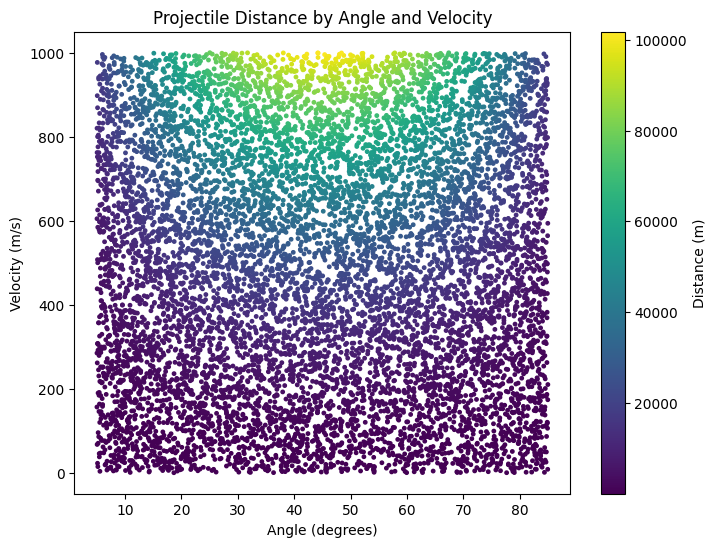

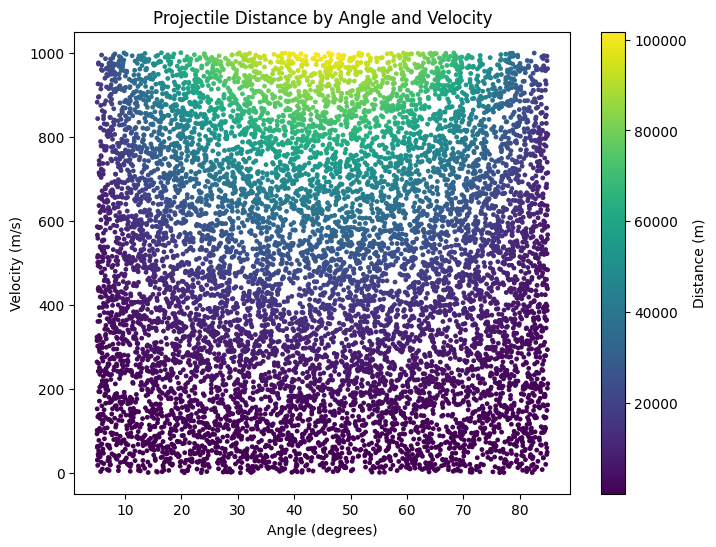

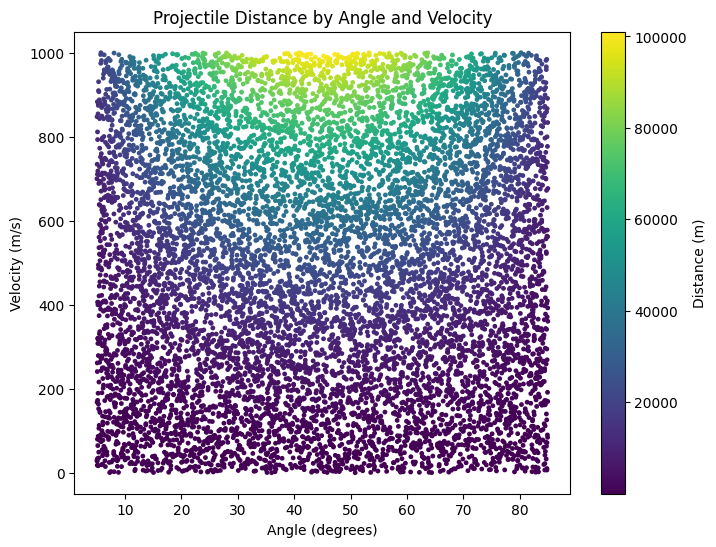

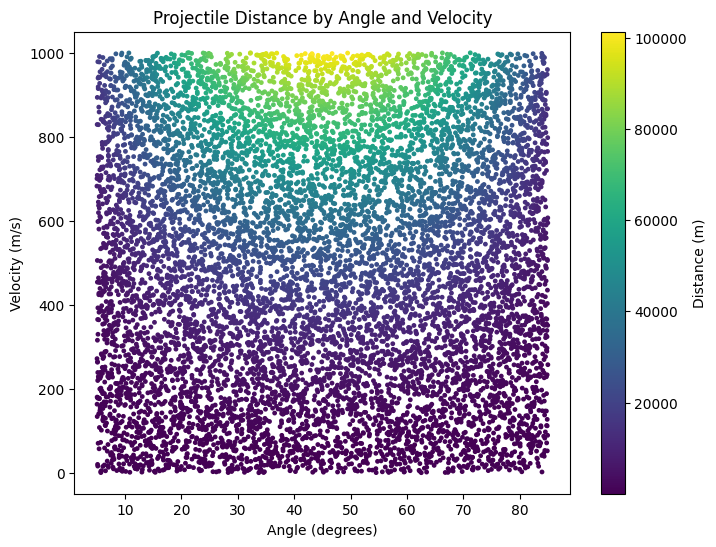

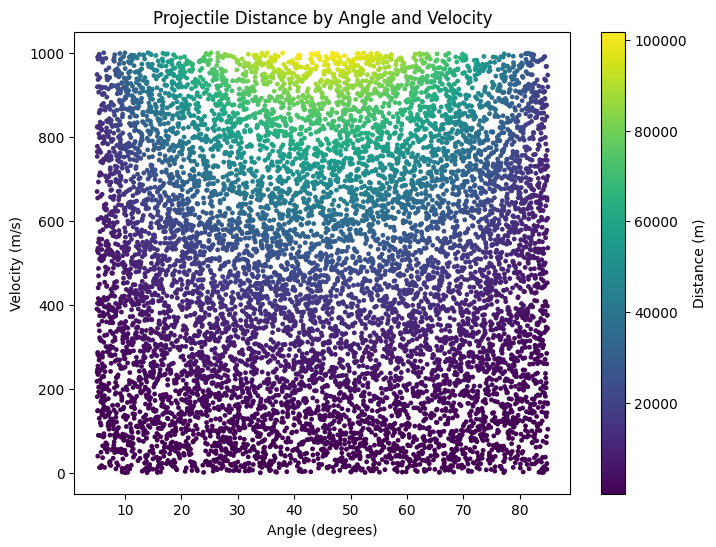

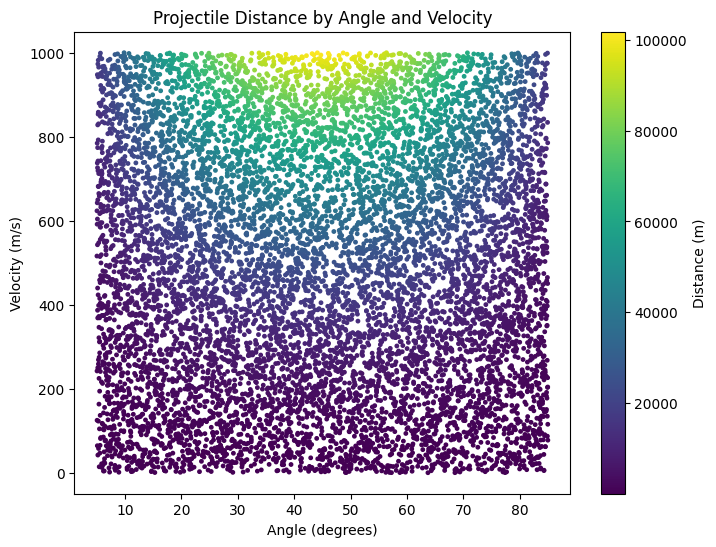

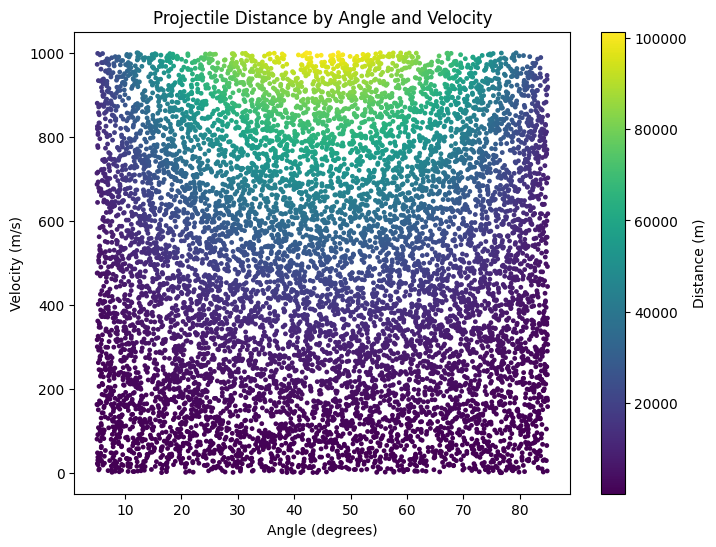

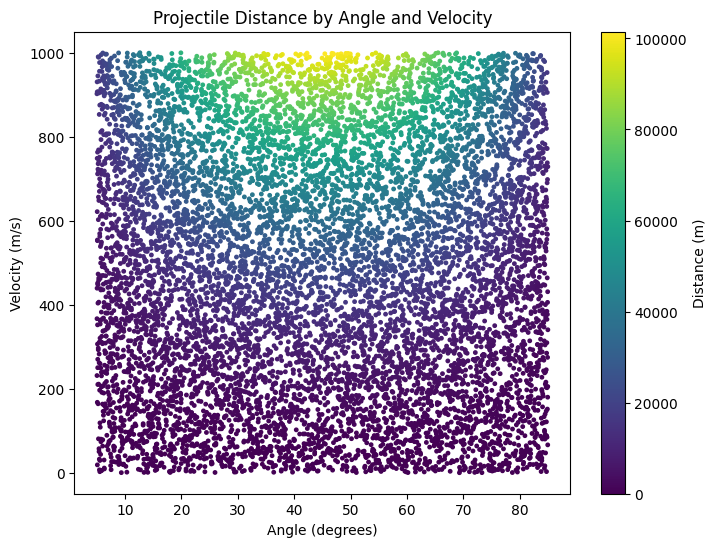

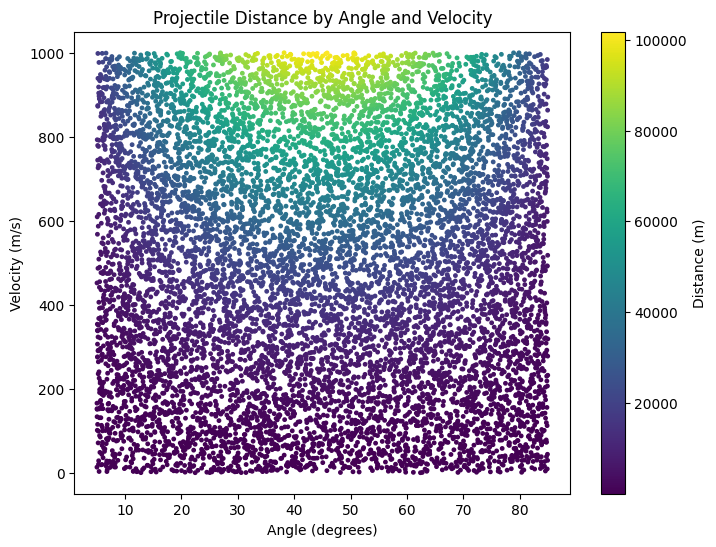

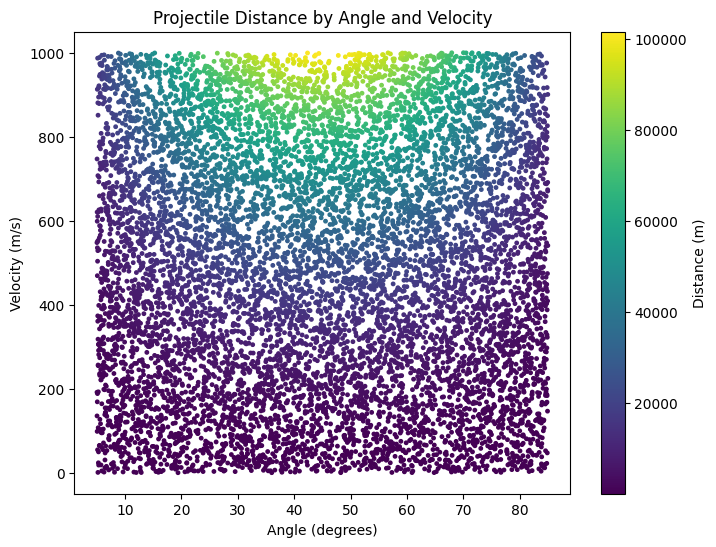

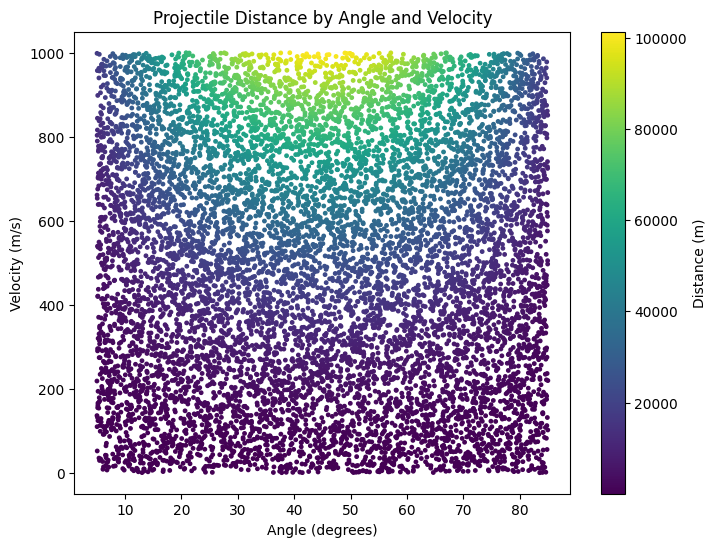

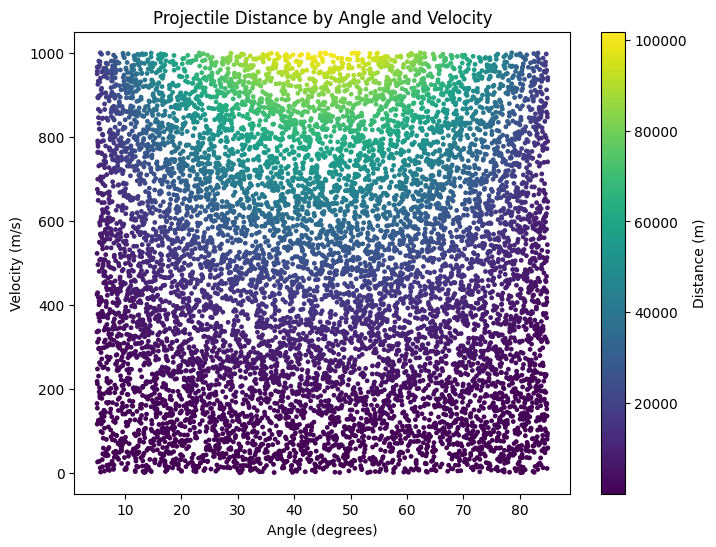

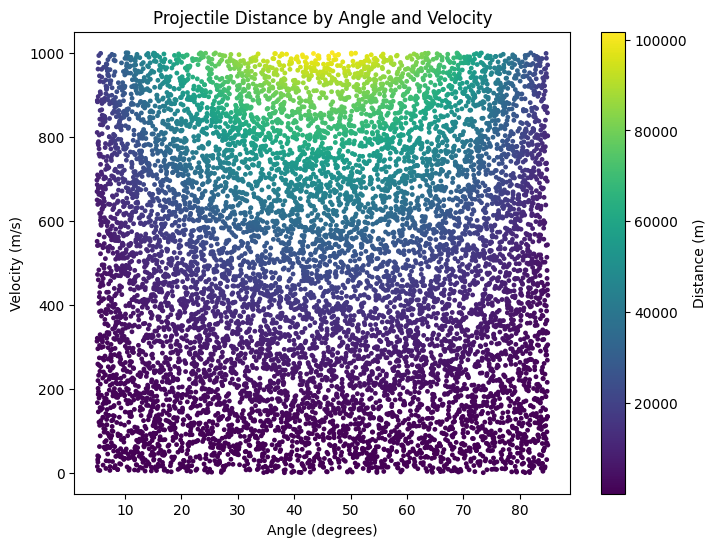

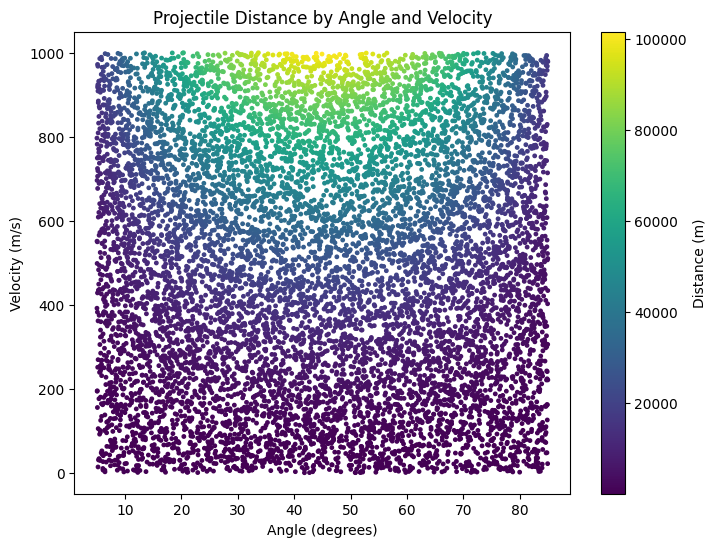

Lets look at the results of 10,000 simulations

inputs = projectile_simulator.sample_inputs(10_000)
outputs = projectile_simulator.forward_batch(inputs)

import matplotlib.pyplot as plt

plt.figure(figsize=(8, 6))
sc = plt.scatter(
    inputs[:, 0].numpy(),  # angle
    inputs[:, 1].numpy(),  # velocity
    c=outputs[:, 0].numpy(),  # distance
    cmap='viridis',
    s=6
)
plt.xlabel('Angle (degrees)')
plt.ylabel('Velocity (m/s)')
plt.title('Projectile Distance by Angle and Velocity')
plt.colorbar(sc, label='Distance (m)')
plt.show()
